Thern Cranes and Winches

Thern 4WS Series Electric Winches
Up to 6000 lbs. Capacity

Models:
4WS1M6 800-1,500 lbs.
4WS3M10 2,000 - 3,500 lbs.
4WS6M12 3,000 - 6,000 lbs.


With load capacities up to 6,000 lbs., Thern’s 4WS series electric winches are perfect for lifting applications that require precision positioning and secure load control. These heavy-duty, industrial winches utilize a combination of helical/worm and spur gearing. Its modular design makes it easy to customize to suit your application.

Features:

Modular Design allows us to make-to-order each winch to meet your exact needs.
Standard Features include TEFC brake motors, enclosed machine cut gearing and flange style ball bearings.
Custom Modifications available include grooved drums, special drum lengths and diameters, limit switches, roller pressure bars, and special finishes. Pneumatic, hydraulic and alternate motor voltages are also available.
Two-year Limited Warranty

Warning
WS Series power Winches/for under 6 tons

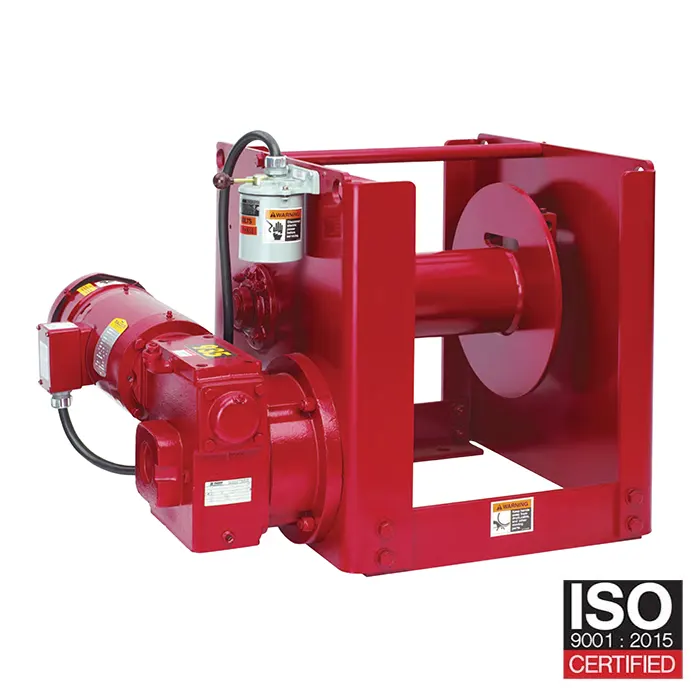

*Model shown: 4WS6M12.

Request A Quote

2 Year Warranty *Optional 5 Year Warranty Available
