Thern Ensign 1000
Click for Larger View

5PA10S stainless steel crane with 4777-K electric
winch and 5BP10S stainless steel pedestal base.

Call us TODAY at 727-835-0672 or
Toll Free at 800-761-4298

Get A Free Quote!

2 Year Warranty *Optional 5 Year Warranty Available

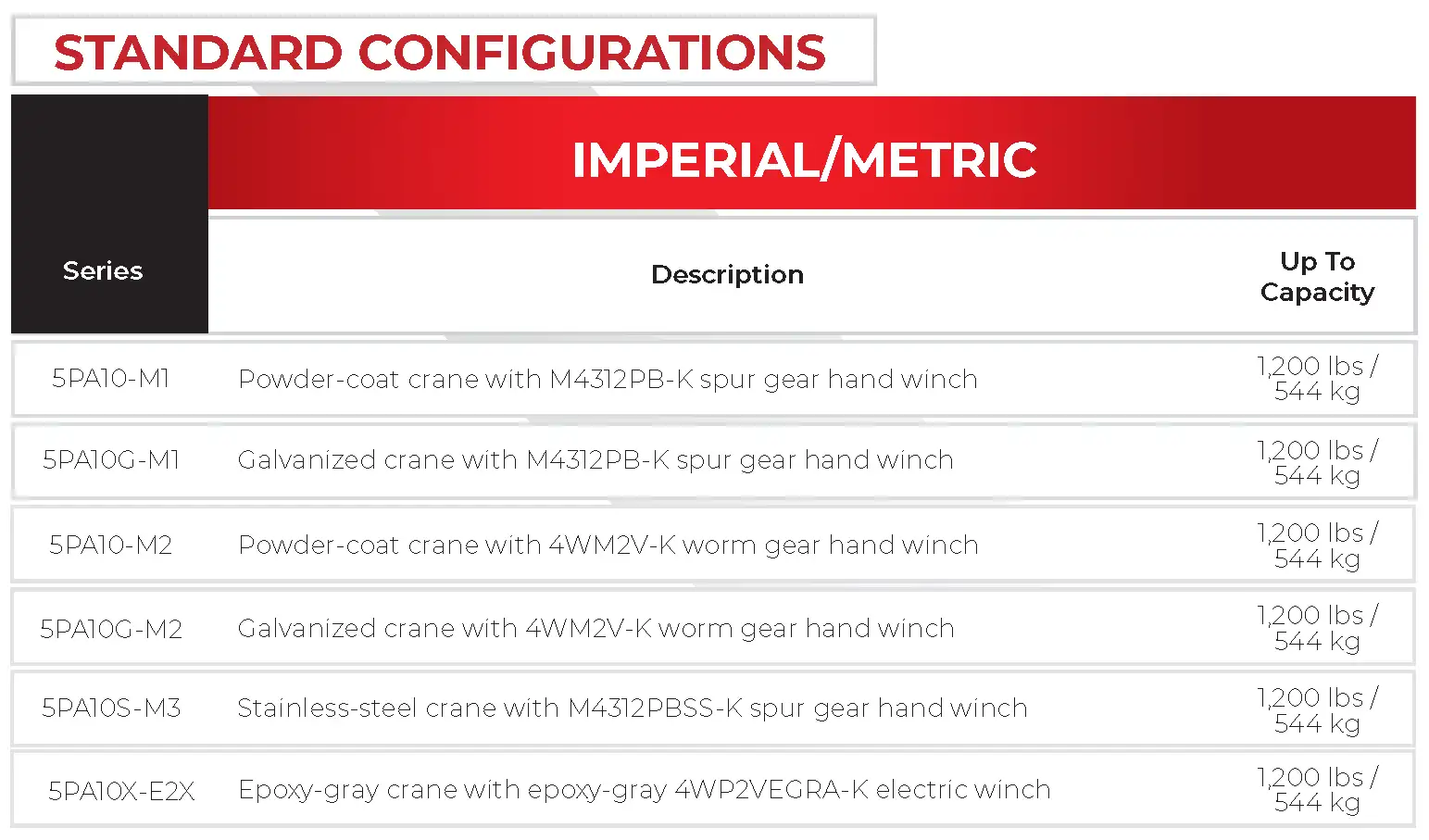

Thern Ensign 1000 5PA10

Up to 1200 lbs. Capacity

With load capacities up to 1,200 lbs. and maximum hook height of 12 ft., the Ensign 1000 is the perfect choice for clearing tall objects, such as hand rails, or lifting tall loads. This versatile davit crane can be operated with a hand or power winch which makes them ideal for many applications like lifting and lowering pumps, gates, UV Panels, mixers, equipment, tools, and man hole covers. This economical series is engineered for clearance, lift height, and ergonomic operation. Quick-release stainless-steel pins allow for quick set up and break down for transport or storage. No tools necessary.

Features:

• Light and portable
• Adjustable Boom Angle
• Adjustable Sheave Block
• Electric, Hydraulic or Pneumatic Operation
• Roller Bearing for Easy 360° Rotation
• Manual or Power Winch Operation
• Five Corrosion-Resistant Finishes
• Easy, No-Tools Assembly/Disassembly
• Variety of Bases
• 2-Year Warranty

Warning
important

5PA10 Color Options Chart 5PA10 Color Options • Base Model includes corrosion resistant electrostatic powder coated finish.
• Galvanized Finish provides extra protection against corrosion.
• Epoxy Grey Finish provides extra protection against corrosion.
• Stainless Steel Models are constructed of 304 or 316 stainless steel with an
  electro-polished finish for superior corrosion resistance.


5PA10 Winch Options Chart 5PA10 Winch Options
• Hand Winch Operated Models include spur gear 3 or worm gear hand winch with brake for load control.
  Model M2 winch can be drill-driven, 300 rpm max.
• Power Winch Operated Models include electric winch with pendant control and brake.
  Other power options available, please contact mdi.
• Quick Disconnect Anchor for quickly attaching or removing wire rope equipped with a swaged ball fitting.

Ensign Other Options

INDEPENDENT BASES – Sold Separately

• Pedestal, Socket (flush mount) or Wall mount style.
Important: Base installation is purchaser’s responsibility. Thern recommends consulting a civil
  engineer or other qualified professional.

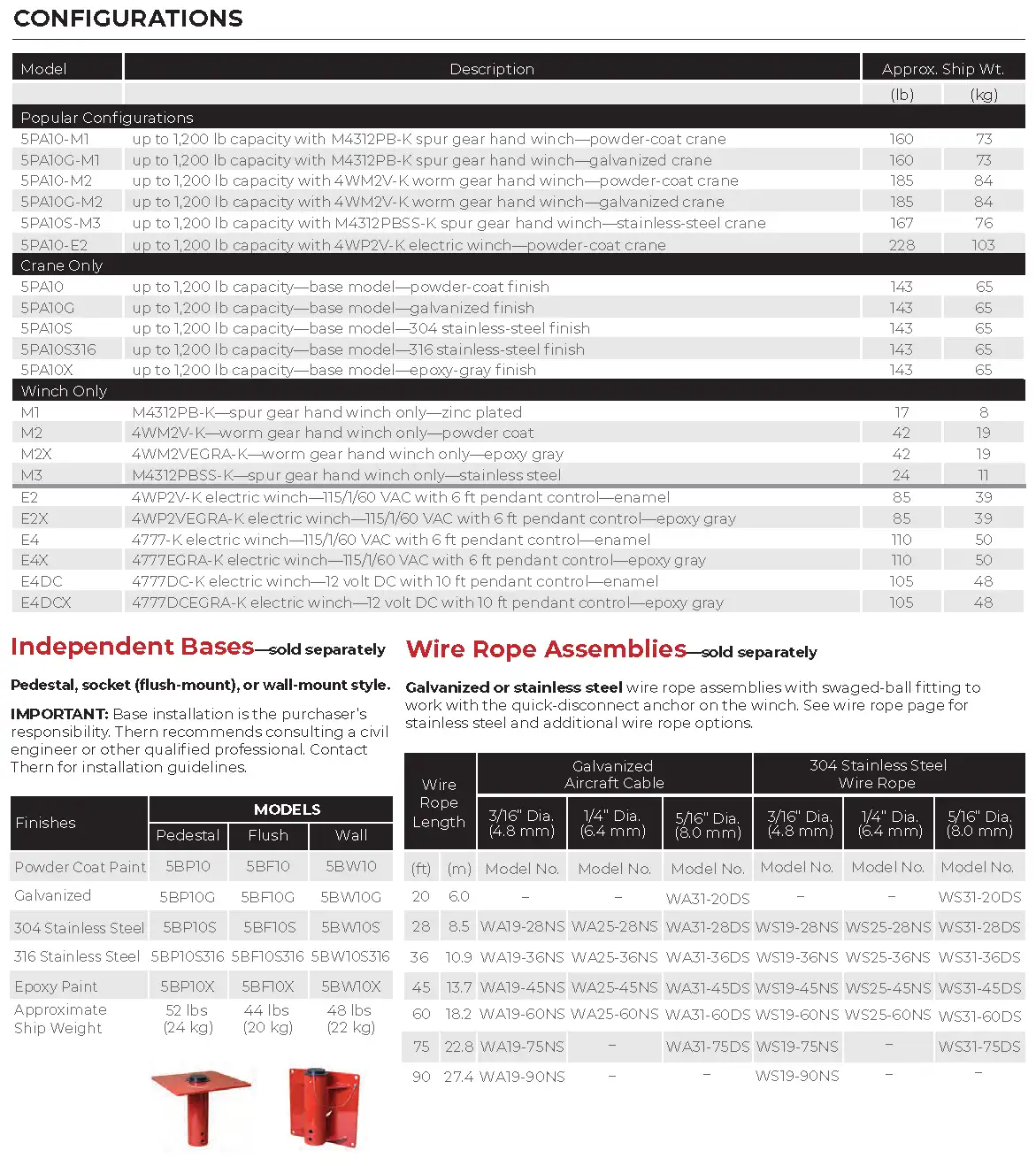

5PA10 Bases Options Chart

WIRE ROPE ASSEMBLIES – Sold Separately

• Galvanized or Stainless Steel wire rope assemblies with swaged ball fitting to work with the quick
  disconnect anchor on the winch. 316 Stainless Steel assemblies available - contact mdi.
5PA10 Rope Options Chart

ACCESSORIES – Sold Separately

5PA10 Accessories 1 5PA10 Accessories 2
