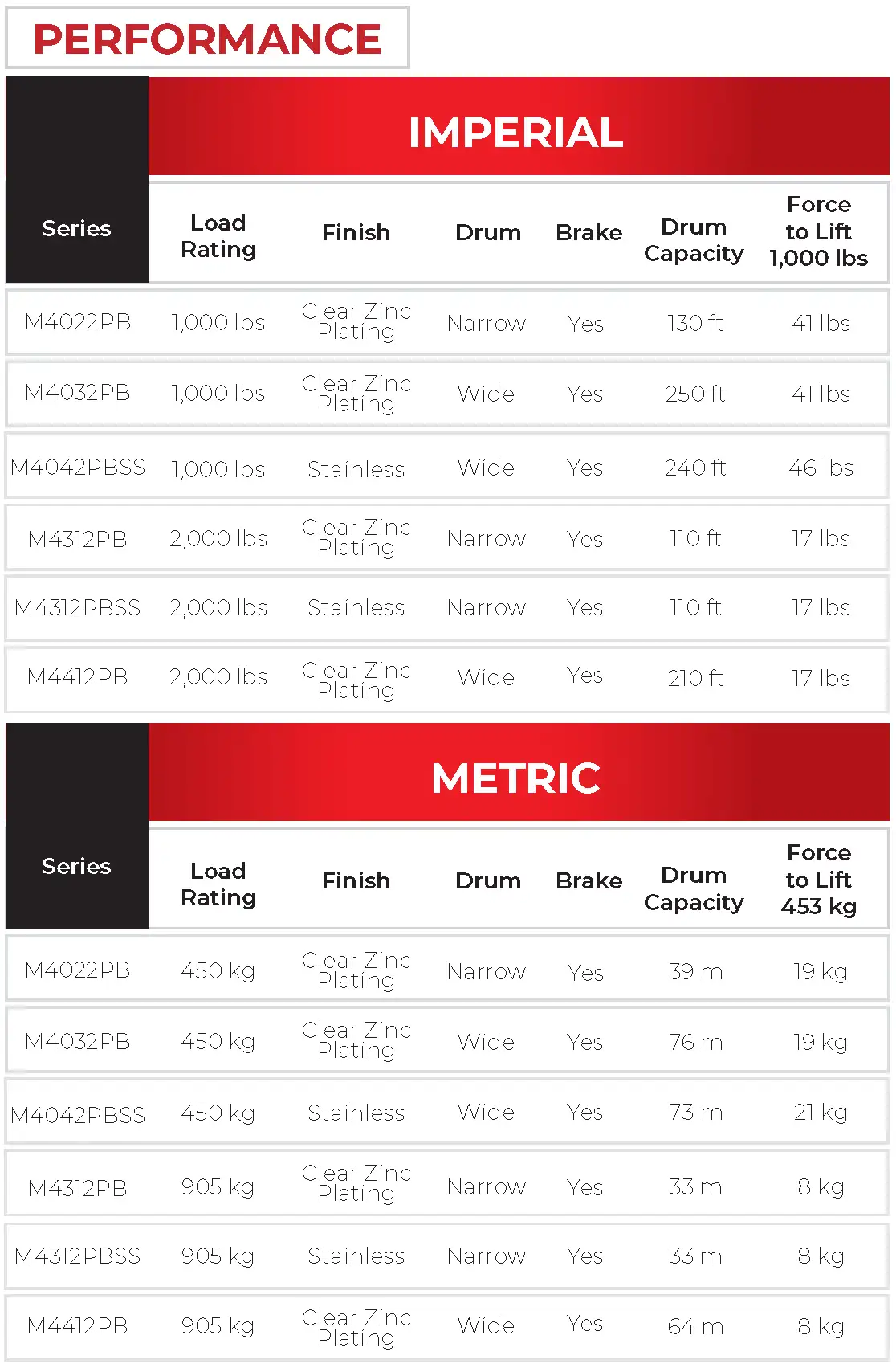

Lift or pull up to 10,000 lb. Machine-cut spur gears provide long-lasting service. Available in a variety of configurations to meet the performance requirements of your manual pulling, hoisting or lowering application. Also available in stainless steel.

Features:
• Machine Cut Spur Gears for accurate and long lasting service.

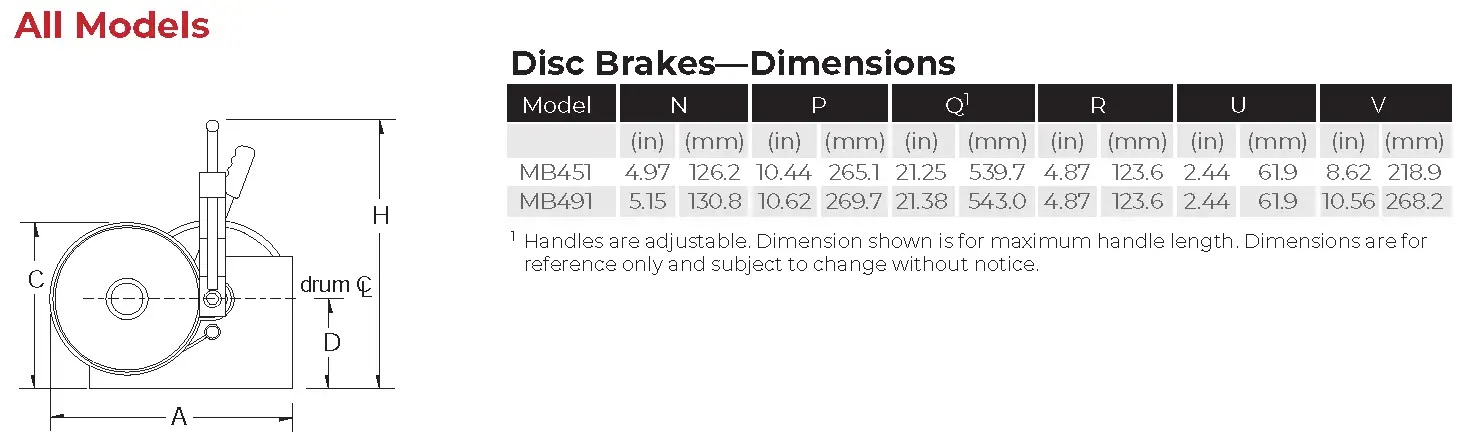

• Automatic Brake Models provide positive load control for lifting and lowering operations. Brake models have a PB or B suffix.
• Corrosion Resistant trivalent zinc plated finish protects against corrosion in harsh environments.

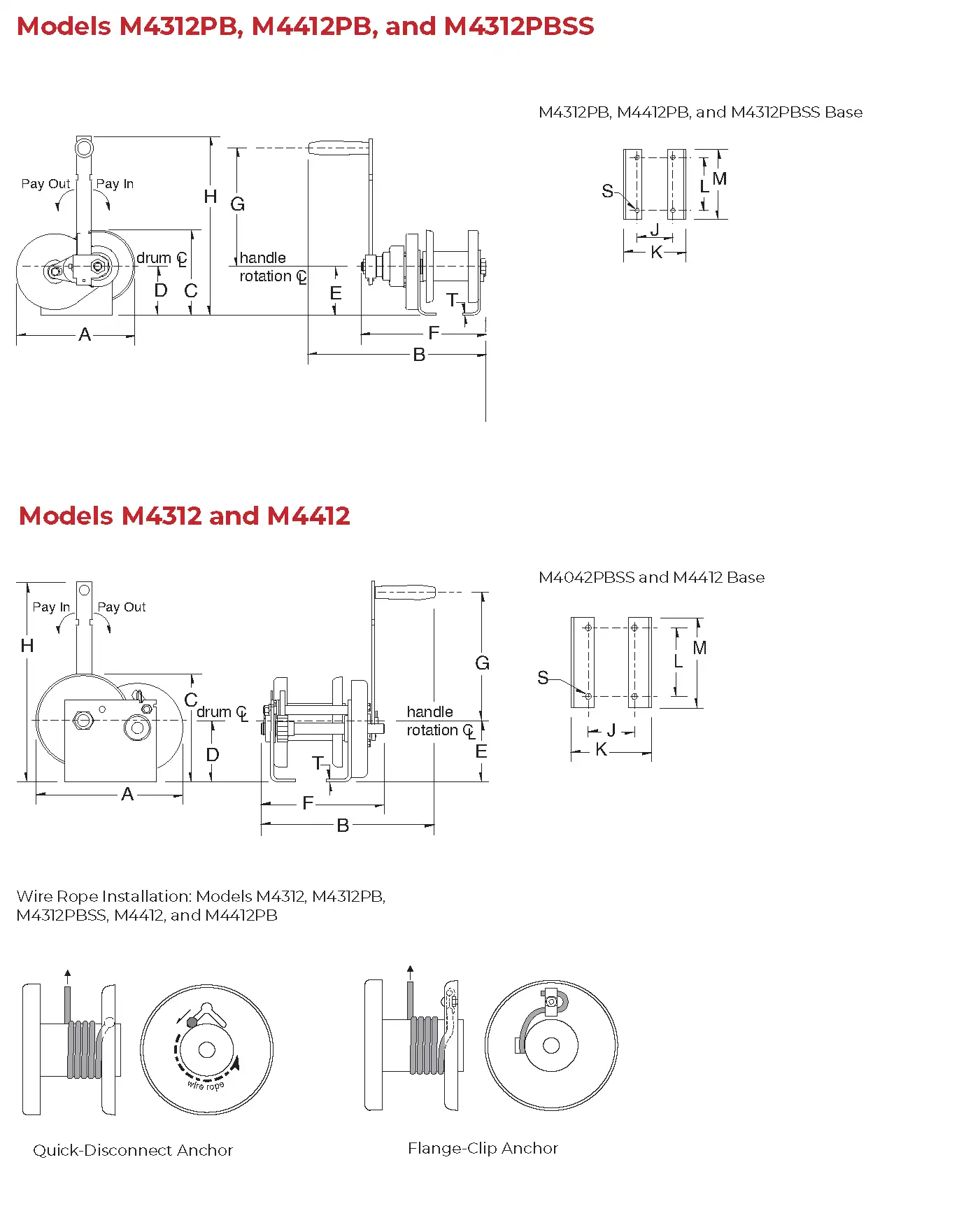

• Quick Disconnect Anchor¹ for quickly attaching or removing wire rope equipped with a swaged ball fitting.
• Bronze and Radial Ball Bearings provide smooth and efficient operation.
• Large Diameter Drums minimize wear to extend wire rope life.
• Gear Covers protect gears and help prevent injuries.
• Stainless Steel Models Available for harsh environments, see models with SS suffix. Stainless steel models are electro-polished for added corrosion resistance.
• Gear Covers protect gears and help prevent injuries.

*Model shown: Spur Gear Series — Model M4022-PB & M4312-PB.

Request A Quote

*Optional 5 Year Warranty Available
